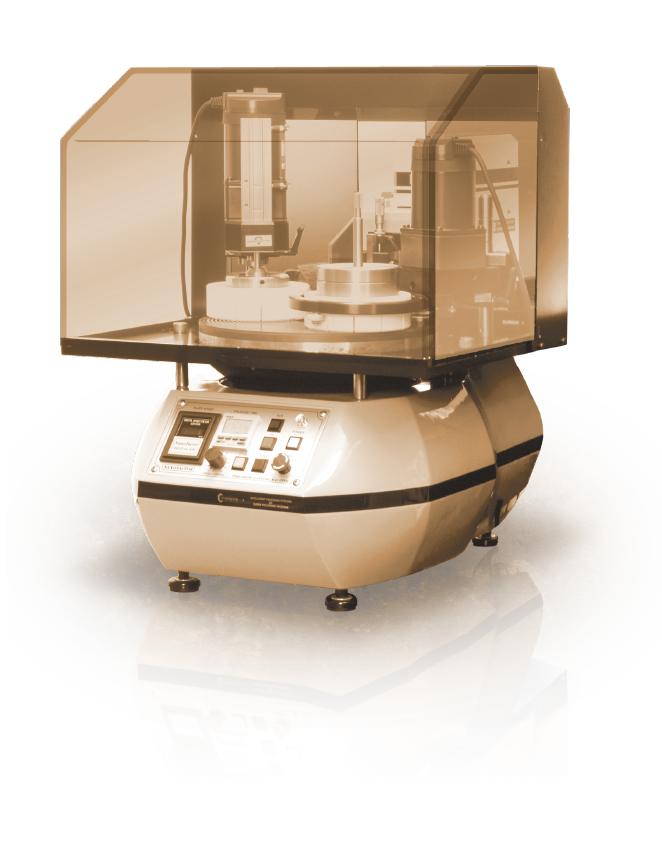

Desktop CMP System：Melissa300D
We offer a desktop CMP system suitable for everything from prototyping to small-scale production.
CMP processes developed by D-process can be transferred and reproduced at your site with consistent performance.
●Ideal for Sample Preparation in R&D
Easily expandable functions to meet diverse sample processing needs.
●Enhanced Drive System and Rigidity
Improvements to the mechanical drive and structural rigidity significantly reduce noise and vibration.
●Comfortable Operation via LCD Touch Panel
User-friendly touch interface enables smooth polishing operations.
Optional feature: centralized management of a wide range of polishing process recipes.
●Safe Polishing with Built-in Safety Features
Equipped with an emergency stop switch, leakage breaker, and optional interlock
cover for safe and secure operation.
Distributor and Manufacturer: D-process Inc.
【Polishing Equipment Specifications】
Model Number: Melissa-300D
Main Unit Dimensions (without cover): W540mm × D570mm × H335mm
Main Unit Dimensions (with cover): W621mm × D594mm × H644mm (cover closed)
W621mm × D652mm × H1205mm (cover open)
Weight：71kg
Polishing Plate Diameter: φ300mm
Rotation Speed: 0rpm - 200rpm
Rotation Display: Digital display on LCD touch panel
Timer: Digital timer control on LCD touch panel
(Adjustable for hours, minutes, and seconds; up to 99 hours 59 minutes 59 seconds)
Motor: Speed control motor 200W
Input Power: AC100V, 1A
AC Power Outlets for Accessories: Two timer-linked power outlets on the rear panel
Attachment Mounting Tap Holes: Three roller-type, Two for oscillation and forced-drive devices
Drain Outlet: Outer diameter φ32mm
Drain hose outer diameterφ42mm (rear)
Safety Cover: PVC cover with interlock system (optional)
Emergency Stop Switch: Standard equipped
Leakage Breaker : Standard equipped (15A)
